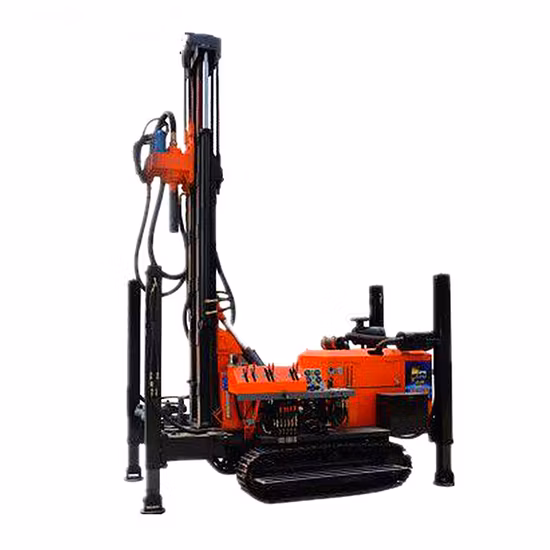

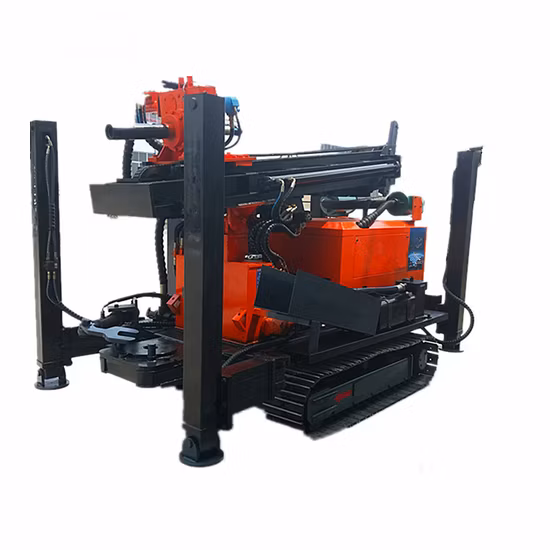

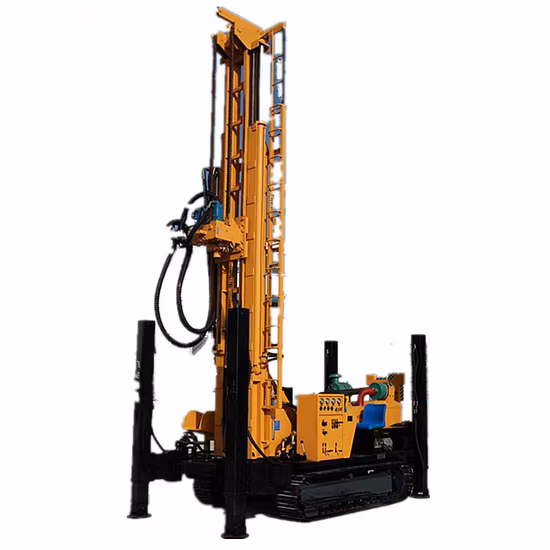

Yg in The Stock 500m Mine Drilling Rig Portable Glass Drilling Machine

Basic Info.

Model NO.	YG 180
Drill Hole Depth	130m
Bit Type	Diamond Drill Bit /PDC Bit/T.C Bit
Drilling Way	Rotary
Spindle Rotating Speed(R/Min)	142 285 570
Drilling Angel(mm)	90-75
Drill Pipe	42-60
Matching Power	13.2kw
Spindle Stroke(mm)	450
Weight	2750kg
Product Name	Deep Geological Soil Survey Drilling Machine /Mini
Voltage	380/660V
Power Type	Diesel
Transport Package	Wooden Case Package
Specification	YG-130
Trademark	YUGONG
Origin	Henan, China
HS Code	8430490000
Production Capacity	200sets/Month

Product Description

100m-600m Deep Geological Soil Survey Mine Drilling Rig
Product description
YG-130 truck-mounted drilling rig is designed to meet the needs of high-speed, high efficiency and high mobility in field drilling,which is a multi-function hydraulic vehicle-mounted rotary drilling rig.The automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. The layout is reasonable, compact, and easy to operate.It is equipped with high pressure,big flow BW250 or BW160 mud pump,which can ensure drilling depth and diameter.The rig has shifting device, it can move on the vehicle and is convenient to operate while drilling.The hydraulic folding mast is safe and convenient to pack.The rigs own reasonable structure, simple operation,easy maintenance and speedy transport.Application:

• Geological survey exploration,
• Road and high-rise building foundation exploration
• Various concrete structure inspection holes
• River dams
• Roadbed grouting holes
• Direct grouting
• Civil water wells
• Ground temperature central air conditioning

Product Parameters

Model		YG- 130	YG-180	YG-200
Drilling depth(m)		130	180	200
Drill rod dia(mm)		42-60	42-60	42-60
Drilling diameter(mm)		220-75	220-75	325-75
Drilling Angel(mm)		90-75	90-75	90-75
Matching power (kw)		13.2	13.2	15
Dimension(m)		4*1.7*2.3	4*1.7*2.3	4*1.7*.2.3
Speed(r/min)		124/285/570	130/300/480/730/830/1045	64/128/287/557
Stroke(mm)		450	450	450
Weight without power(kg)		2750	2800	3000
Mud pump		BW-160/BW-250	BW-160/BW-250	BW-160/BW-250
Motor tricycle	Model	7YP1475D1	7YP1475D1	7YP1475D1
	Emission standard	GB19756-2005(II)	GB19756-2005(II)	GB19756-2005(II)
	Rated speed(r/min)	2200	2200	2200
	Rated power (kw)	18.3	18.3	18.3
Drill mast	Rated load(ton)	18	18	18
	Height(m)	6.5	6.5	6.5
Winch	Displacement(L/MIN)	160	160	160
	Max.pressure(Mpa)	1.3	1.3	1.3
	times/min	165	165	165
	Inlet hose dia.(mm)	51	51	51
	Outlet hose dia.(mm)	32	32	32

Product Strength

1. Truck mounted drilling rigs are muti-function hydraulic spindle rotary drilling rig
2. YG-200 uses Wuzhong motor tyicyle 7y-1475d1 Tangjun Duolika as truck chassis .
3. Drilling rig and mud pump are installed on the chassis in reasonable&compact layout.
4. Equipped with B-160 or BW 250 mud pump, high pressure, large flow, it ensures drill depth and diameter.
5. Equipped with a mobile device which can realize the movement of the rig itself forward and back, which is convenient for wellhead operation.
6. Automatic hydraulic -control drill mast, is easy to operate and ensure safety.

Product details

Working displayCompany InformationHenan Yugong Machinery Co.,Ltd. is specialized in machinery in China over 20 years.We are committed to researching and developing all kinds of mineral equipment, construction machinery, prestressed machinery, metallurgy machinery etc. Henan Yugong Machinery Co., Ltd aims to have top quality, top reputation and top service. "Quality First, Reputation First, Be Innovative, Be Excellent" has always been our purpose. We warmly welcome your corporation from all fields and build great future for us all.

RFQ1.Are you manufacturer or trade company? We are manufacturer focused on machinery over 20 years.2. What Should We do if the Item doesn't Meet our Requirements after Receiveing? If the item doesn't meet your requirements after receiving it, you can return it within 10-15 days.3. How Long is your Delivery Time? It depends on the machine you buy and the quantity. Generally it is 3-5 days if the machine is in stock. And it will take 15-30 days if you want customized type.4.What about the packing? Standard wooden case.5.Warranty: One year.6.Any other service you can provide?logo printing; customized color; any other reasonable request from our clients.7.Can we visit to your factory? Yes, of course. Welcome to our factory to see our machine any time.8.Have you exported this machine to other countries? Yes, we have exported this machine to many countries, such as United State, South America, Africa, the Middle East and Asia and so on. 9.What is your Payment Term?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc. Payment<=USD 5000, 100% in advance. Payment>=USD 5000, 30% T/T in advance, balance before shipment.
ServicePre-sale Service:1.Help you to chose the fit machine.2.Making the machine according to your requirement.Sale Service:1.Acceptance equipment together with you.2.Help you to make the method statement and the details of the process.After Service:1.Guarantee for a year.2.Quality problem,we will send you the accessories.
