Sanken Glass Working Center Quenching Glass CNC Router Vertical Center

Basic Info.

Model NO.	SKDM-2030V
Glass Edging Machine Type	Glass Double Edging Machine
Grinding Head Number	22
Condition	New
After-sales Service	1 Year
Shipment	40 Gp
Weight	5 Tons
Axis	5
Thickness	4-30 mm
Transport Package	Exports Packing
Specification	2000 * 3000 mm
Trademark	SANKEN
Origin	Guangzhou
HS Code	8475291900
Production Capacity	40 Sets/Year

Product Description

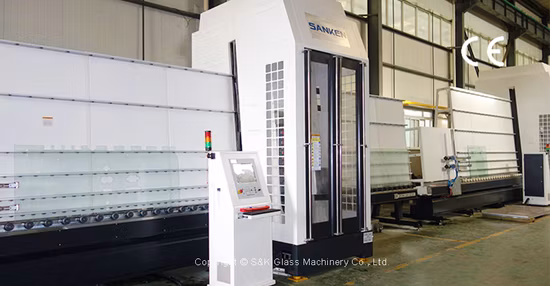

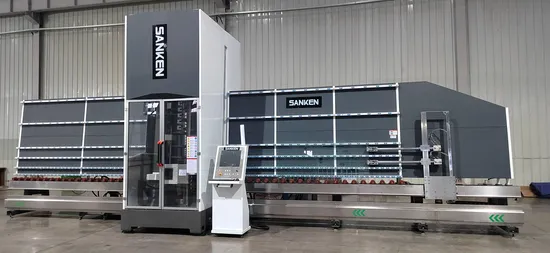

SANKEN GLASS Vertical CNC Drilling and Milling Router SKDM-CNC-2030V
• SANKEN series Vertical CNC Drilling and Milling Working Center is made with high technology. It can perfectly perform complicated working in short time, and the processed products are of absolute high quality.• The CNC working center applies numerical operation and control system to achieve dynamic management of each axis and speed precision control, so it can process high precision shape. It is a highly intelligent CNC vertical drilling and milling machine to process simple or complex drawing and featured by the most advanced technology. It is a good solution to the requirement on processing high precision, high speed and simple operation.• SKDM-CNC-V can automatically process complex drilling, milling and chamfering on large flat glass. The flexibility of the control system can meet the requirement of different products, the whole work will be finished automatically. This Vertical CNC Drilling and Milling Working Center is suitable to process frameless glass door, curtain wall glass, shower room glass, etc.

Model	Speed	Min. Size	Max. Size	Thickness	Power	Weight	Occupation Area
SKDM-CNC-2030V	12000rpm/min	200 x 500 mm	2000 x 3000 mm	5-19 mm	22 kw	5000 kg	9300 x 2500 x 3700 mm
SKDM-CNC-2436V	12000rpm/min	200 x 500 mm	2440 x 3660 mm	5-19 mm	22 kw	7000 kg	9400 x 2500 x 4100 mm
SKDM-CNC-2442V	12000rpm/min	200 x 500 mm	2400 x 4200 mm	5-19 mm	22 kw	8000 kg	9000 x 2500 x 4100 mm
SKDM-CNC-2550V	12000rpm/min	200 x 500 mm	2500 x 5000 mm	5-19 mm	22 kw	9000 kg	11700 x 2500 x 4200 mm
SKDM-CNC-3060V	12000rpm/min	200 x 500 mm	3000 x 6000 mm	5-19 mm	22 kw	10000 kg	15800 x 2500 x 4700 mm
